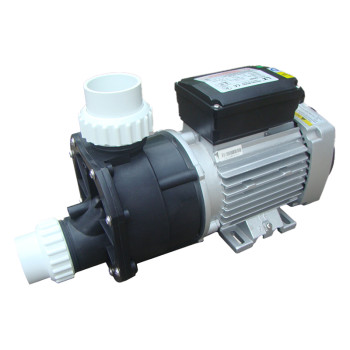

Bathtub Water Pump EA Series Wholesale | High Performance Water Circulation Pump for Massage Bathtub | Wholesale Available in Multiple Specifications
- group name
- Water Pumps
- Min Order
- 50 piece
- brand name
- Hydrorelax Bathroom industry manufacturer
- model
- EA320,EA350,EA390,EA450
- Nearest port for product export
- shanghai, ningbo, shenzhen, guangdong
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Sat, 10 May 2025 06:01:34 GMT
Paramtents
Thermal protector: with thermal protector (single phase motor)
Insulation Rating: F
Protection class: IP55
Medium temperature: 5~50℃
Ambient Temperature: ≤50℃
Maximum working pressure: 0.3MPa
Certification: CE ; TUV
Packging & Delivery
- 420cm x180cm x255cm
-
Min Order50 piece
Briefing
0.55KW/0.75HP~1.1KW/1.5HP
280~360QMAX(L/MIN)
280~360QMAX(L/MIN)
Detailed
Bathtub Water Pump Parameter
Model | Qmax(I/min) |
Hmax(m)
|
V/Hz | Power(P1) | (Amps) |
Fitting size(mm)
|
(Kg)
|
Packin size(mm)
|
Qty/20' | |||
kW | HP |
|||||||||||
EA320 | 280 |
11
|
220-240/50 | 0.55 | 0.75 | 3.2 |
48.5or50
|
9.0
|
420×180×255
|
1504 | ||
EA350 | 320 |
11
|
220-240/50 | 0.75 | 1.0 | 3.8 |
48.5or50
|
9.5
|
420×180×255
|
1504 | ||
EA390 | 335 | 15 | 220-240/50 | 0.9 | 1.2 | 4.6 | 48.5or50 | 9.8 | 420×180×255 | 1504 | ||
EA450 | 360 | 15 | 220-240/50 | 1.1 | 1.5 | 5.8 | 48.5or50 | 10.5 | 380*180*250 | 1504 | ||
Bathtub Water Pump Performance Curves
Bathtub Water Pump Dimension
Bathtub Water Pump Exploded View
NO. | Name | |||||||||
1 | Tie-in Nut | |||||||||
2 | Tie | |||||||||
3 | O-Ring | |||||||||
4 | Cross Raised Head Screw Assembling | |||||||||
5 | Pump Cover | |||||||||
6 | O-Ring | |||||||||
7 | Impeller | |||||||||
8 | Mechanical seal | |||||||||
9 | Pump Casing | |||||||||
10 | Screw | |||||||||
11 | Motor | |||||||||
Bathtub Water Pump Applications
