Bathtub Water Pump WH Series Wholesale | Waterless Protection Advanced Water Pump for Whirlpool Massage Bathtubs | B2B Sourcing

group name: Water Pumps

Min Order: 50 piece

brand name: Hydrorelax Bathroom industry manufacturer

model: WH75, WH100, WH120

Nearest port for product export: shanghai, ningbo, shenzhen, guangdong

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union

update time: Sat, 10 May 2025 09:54:55 GMT

contact supplier

Paramtents

Thermal protector: with thermal protector (single phase motor)
Insulation rating: F
Protection class: IP55
Medium temperature: 5~50℃
Ambient temperature: ≤50℃
Maximum working pressure: 0.3MPa
Certification： CE

Packging & Delivery

360cm x150cm x250cm
Min Order50 piece

Briefing

0.55KW/0.75HP~0.9KW/1.2HP
335~400 QMAX(L/MIN)

Detailed

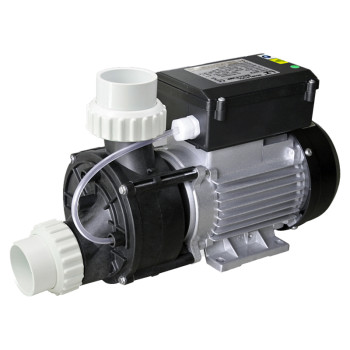

Bathtub Water Pump Introduction

The pump is equipped with water pressure type waterless protection, and the pressure sampling and electric pump are integrated. The conduction pressure of the pressure switch is directly sampled from the pressure generated by the electric pump itself when it rotates. When there is no medium in the pump body, the water pressure switch cannot be turned on, thereby achieving the purpose of preventing the electric pump from operating when there is no water in the bathtub.

Bathtub Water Pump Parameter

Bathtub Water Pump Performance Curves

Bathtub Water Pump Dimension

Bathtub Water Pump Exploded View

NO.		NAME
1		Tie-in Nut
2		Tie
3		O-Ring
4		Heaagon Screw
5		Pump Cover
6		Air tube
7		Impeller
8		Mechanical seal
9		O-Ring
10		Pump Casing
11		Motor

Bathtub Water Pump Applications
