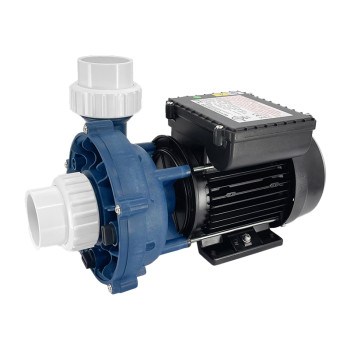

Bathtub Water Pump WTS Series Wholesale | High-Speed Whirlpool Water Recirculation Pump for Massage Bathtubs | Direct Bulk Source from Factory
- group name
- Water Pumps
- Min Order
- 50 piece
- brand name
- Hydrorelax Bathroom industry manufacturer
- model
- WTS50M
- Nearest port for product export
- shanghai, ningbo, shenzhen, guangdong
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Sat, 10 May 2025 09:21:28 GMT
Paramtents
Thermal protector: with thermal protector
Insulation rating: F
Protection class: IP55
Medium temperature: 5~50℃
Ambient temperature: ≤50℃
Maximum working pressure: 0.3MPa
Certification: CE
Packging & Delivery
- 380cm x185cm x240cm
-
Min Order50 piece
Briefing
0.55KW/0.75HP~1.1KW/1.5HP
280~360QMAX(L/MIN)
280~360QMAX(L/MIN)
Detailed
Bathutb Water Pump Parameter
110V/60Hz, 110v/50Hz models are available on request.
Bathutb Water Pump Performance Curves
Bathutb Water Pump Dimension
Bathutb Water Pump Exploded View
NO. | NAME | |||
1 | Tie-in Nut | |||
2 | Tie | |||
3 | O-Ring | |||
4 | Plug | |||
5 | O-Ring | |||
6 | Cross Raised Head Screw Assembling | |||
7 | Pump Cover | |||
8 | O-Ring | |||
9 | Activities Rings | |||
10 | Impeller | |||
11 | Mechanical seal | |||
12 | Pump Casing | |||
13 | Motor | |||
Bathutb Water Pump Applications
