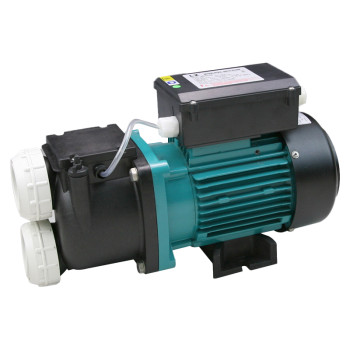

Bathtub Water Pump XDA Series Wholesale | Hydrotherapy Equippment Dual Lower Inlet Massage Bathtub Water Pumpf | Support Mass Supply

group name: Water Pumps

Min Order: 50 piece

brand name: Hydrorelax Bathroom industry manufacturer

model: XDA75, XDA100, XDA120, XDA150

Nearest port for product export: shanghai, ningbo, shenzhen, guangdong

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union

update time: Sat, 10 May 2025 10:33:36 GMT

contact supplier

Paramtents

Thermal protector: with thermal protector (single phase motor)
Insulation rating: F
Protection class: IP55
Medium temperature: 5~50℃
Ambient temperature: ≤50℃
Maximum working pressure: 0.3MPa

Packging & Delivery

410cm x170cm x280cm
Min Order50 piece

Briefing

0.55KW/0.75HP~1.1KW/1.5HP
300~380 QMAX(L/MIN)

Detailed

Bathtub Water Pump Introduction

The pump is equipped with water pressure type waterless protection, and the pressure sampling and electric pump are integrated. The conduction pressure of the pressure switch is directly sampled from the pressure generated by the electric pump itself when it rotates. When there is no medium in the pump body, the water pressure switch cannot be turned on, thereby achieving the purpose of preventing the electric pump from operating when there is no water in the bathtub.

Bathtub Water Pump Parameter

Bathtub Water Pump Performance Curves

Bathtub Water Pump Dimension

Bathtub Water Pump Exploded View

NO.		NAME
1		Tie-in Nut
2		Tie
3		O-Ring
4		Hexagon Bolt
5		Washer
6		Pump Casing
7		O-Ring
8		Upper Cover
9		Cross Recessed Pan Head Tapping Screw
10		Float
11		Plastic Spacer
12		Air Drain Plug
13		Guide Plate
14		Impeller
15		Mechanical seal
16		Shaft Sleeve
17		O-Ring
18		Pump Cover
19		Motor

Bathtub Water Pump Applications
