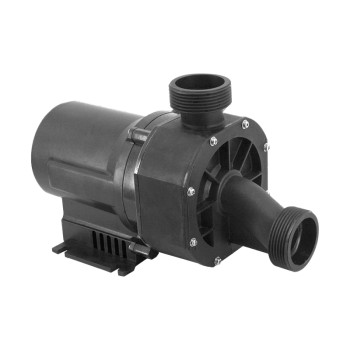

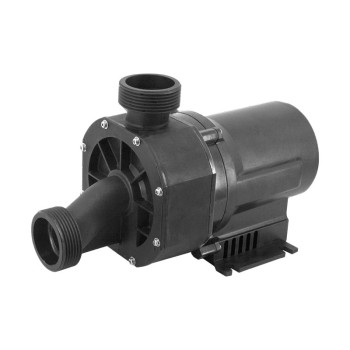

Bathtub Water Pump NR Series Wholesale | Premium Pump for Massage Bathtub | Manufacturer Direct Sale
- group name
- Water Pumps
- Min Order
- 50 piece
- brand name
- Hydrorelax Bathroom industry manufacturer
- model
- NR120
- Nearest port for product export
- shanghai, ningbo, shenzhen, guangdong
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Sat, 10 May 2025 10:33:36 GMT
Paramtents
Thermal protector: with thermal protector( single phase motor)
Insulation rating: F
Medium temperature: 5~50℃
Ambient temperature: ≤40℃
Maximum working pressure: 0.3MPa
Certification: UL Recognised Parts
Packging & Delivery
- 355cm x170cm x280cm
-
Min Order50 piece
Briefing
0.25KW/0.33HP~0.9KW/1.2HP
180~300QMAX(L/MIN)
180~300QMAX(L/MIN)
Detailed
Bathtub Water Pump Parameter
Bathtub Water Pump Performance Curves
Bathtub Water Pump Dimension
Bathtub Water Pump Exploded View
NO. | NAME | |||
1 | Cross Recessed Pan Head Screw snd Washer Assemblings | |||
2 | Pump Cover | |||
3 | Impeller | |||
4 | Mechanical seal | |||
5 | O-Ring | |||
6 | Pump Casing | |||
7 | Retaining Ring | |||
8 | Motor | |||
9 | Motor Shell | |||
10 | Cross Recessed Pan Head Screw | |||
11 | Cable Head | |||
12 | Cable | |||
13 | Cable Pressing Block | |||
14 | Cross Recessed Pan Head Screw | |||
15 | Terminal | |||
16 | Box Cover Plate | |||
17 | Cross Recessed Pan Head Screw | |||
Bathtub Water Pump Applications
