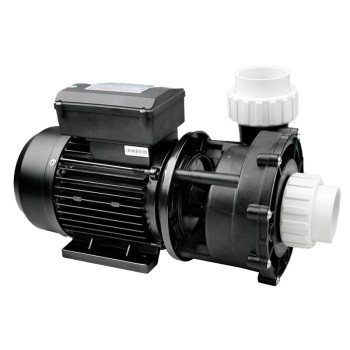

Spa Water Pump LP Series | Bulk Order Adjustable Angle Water Pump with Rotating End Cap for Hot Tub
- group name
- Water Pumps
- Min Order
- 50 piece
- brand name
- Hydrorelax Bathroom industry manufacturer
- model
- LP150, LP200, LP250, LP300
- Nearest port for product export
- shanghai, ningbo, shenzhen, guangdong
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Sat, 10 May 2025 08:43:46 GMT
Paramtents
Thermal protector: with thermal protector( single phase motor)
Insulation rating: F
Protection class: IP55
Medium temperature: 5~50℃
Ambient temperature: ≤50℃
Maximum working pressure: 0.3MPa
Packging & Delivery
-
Min Order50 piece
Briefing
1.1KW/1.5HP~2.2KW/3.0HP
520~635 QMAX(L/MIN)
520~635 QMAX(L/MIN)
Detailed
SPA Water Pump Introduction
LP series pump cover can be rotated at 12:00, 9:00, 3:00, 1:30 location, which is convenient for pipeline installation.
SPA Water Pump Parameter
SPA Water Pump Performance Curves
SPA Water Pump Dimension
SPA Water Pump Exploded View
NO. | NAME | |||
1 | Tie-in Nut | |||
2 | Tie | |||
3 | O-Ring | |||
4 | Hexagon Screw | |||
5 | O-Ring | |||
6 | Cross Raised Head Screw Assembling | |||
7 | Pump Cover | |||
8 | O-Ring | |||
9 | Impeller | |||
10 | Mechanical seal | |||
11 | Pump Casing | |||
12 | Plain Washer | |||
13 | Plastic Spacer | |||
14 | Motor | |||
SPA Water Pump Applications
