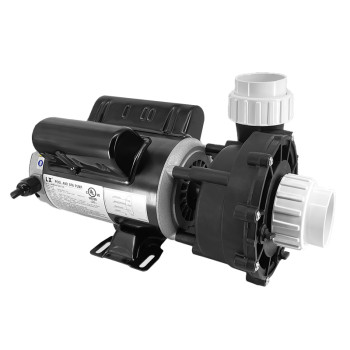

Spa Water Pump 48WUA-2/6Series | Simplified Installation Rotating Water Pump Manufacturer and Supplier
- group name
- Water Pumps
- Min Order
- 50 piece
- brand name
- Hydrorelax Bathroom industry manufacturer
- model
- 48WUA1501-2/6, 48WUA1502-2/6, 48WUA2001-2/6, 48WUA2502-2/6, 48WUA3002-2/6
- Nearest port for product export
- shanghai, ningbo, shenzhen, guangdong
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Sat, 10 May 2025 06:02:34 GMT
Paramtents
Thermal protector: with thermal protector
Insulation rating: F
Medium temperature: 5~50℃
Ambient temperature: ≤65℃
Maximum working pressure: 0.3MPa
Packging & Delivery
-
Min Order50 piece
Briefing
0.15KW/0.2HP~2.2KW/3.0HP
135~720 QMAX(L/MIN)
135~720 QMAX(L/MIN)
Detailed
SPA Water Pump Parameter
SPA Water Pump Performance Curves
SPA Water Pump Dimension
SPA Water Pump Exploded View
NO. | NAME | |||
1 | Tie-in Nut | |||
2 | Tie-in | |||
3 | O-Ring | |||
4 | Drainage Plug | |||
5 | O-Ring | |||
6 | Cross Recessed Pan Head Screw and Washer Assembling | |||
7 | Pump Cover | |||
8 | O-Ring | |||
9 | Activity Ring | |||
10 | Impeller | |||
11 | Mechanical seal | |||
12 | Pump Casing | |||
13 | Motor | |||
SPA Water Pump Applications
