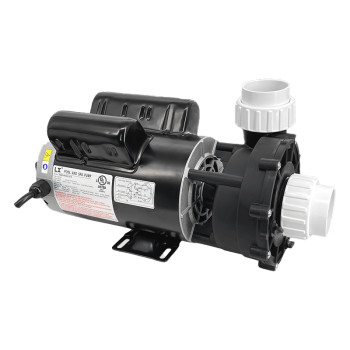

Spa Water Pump 56WUA-2/6 Series | Multi-Angle Rotating Water Pump with Variable Frequency | Direct Sale from Factory
- group name
- Water Pumps
- Min Order
- 50 piece
- brand name
- Hydrorelax Bathroom industry manufacturer
- model
- 56WUA300-2/6, 56WUA400-2/6, 56WUA450-2/6
- Nearest port for product export
- shanghai, ningbo, shenzhen, guangdong
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Sat, 10 May 2025 08:43:46 GMT
Paramtents
Thermal protector: with thermal protector( single phase motor)
Insulation rating: F
Medium temperature: 5~50℃
Ambient temperature: ≤+65℃
Maximum working pressure: 0.3MPa
Packging & Delivery
- 455cm x255cm x285cm
-
Min Order50 piece
Briefing
0.22KW/0.3HP~2.2KW/3.0HP
200~830 QMAX(L/MIN)
200~830 QMAX(L/MIN)
Detailed
Bathtub Water Pump Parameter
Bathtub Water Pump Performance Curves
Bathtub Water Pump Dimension
Bathtub Water Pump Exploded View
NO. | NAME | |||
1 | Tie-in Nut | |||
2 | Tie-in | |||
3 | O-Ring | |||
4 | Drainage Plug | |||
5 | O-Ring | |||
6 | Cross Recessed Pan Head Screw and Washer Assembling | |||
7 | Pump Cover | |||
8 | O-Ring | |||
9 | Activity Ring | |||
10 | Impeller | |||
11 | Mechanical seal | |||
12 | Pump Casing | |||
13 | Motor | |||
Bathtub Water Pump Applications
