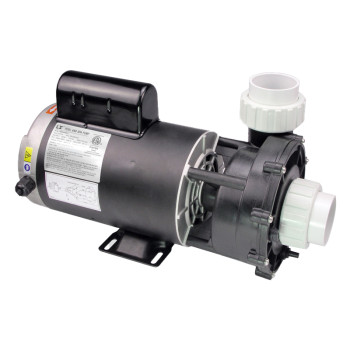

SPA Water Pump 56WUA200/300/350/400 Series | Long-Life Low-Maintenance Whirlpool Pump for Hot Tub | Manufacturer Direct Supply
- group name
- Water Pumps
- Min Order
- 50 piece
- brand name
- Hydrorelax Bathroom industry manufacturer
- model
- 56WUA200-Ⅰ, 56WUA300-Ⅰ, 56WU350-Ⅰ, 56WUA400-Ⅰ, 56WUA200-Ⅱ, 56WUA300-Ⅱ,56WUA350-Ⅱ, 56WUA400-Ⅱ
- Nearest port for product export
- shanghai, ningbo, shenzhen, guangdong
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Sat, 10 May 2025 06:38:45 GMT
Paramtents
Thermal protector: with thermal protector( single phase motor)
Insulation rating: F
Medium temperature: 5~50℃
Ambient temperature: ≤50℃
Maximum working pressure: 0.3MPa
Certification: UL ; ETL
Packging & Delivery
- 440cm x245cm x290cm
-
Min Order50 piece
Briefing
0.37KW/0.5HP~3.0KW/4.0HP
245~765 QMAX(L/MIN)
245~765 QMAX(L/MIN)
Detailed
Attention: P1 is the input power and P2 is the output power. Please confirm whether the power of the pump matches before purchasing.
SPA Water Pump Introduction
56WUA200/300/350/400 series pump cover can be rotated at 12:00, 9:00, 3:00, location, which is convenient for pipeline installation.
SPA Water Pump Parameter
SPA Water Pump Performance Curves
SPA Water Pump Dimension
SPA Water Pump Exploded View
NO. | NAME | |||
1 | Tie-in Nut | |||
2 | Tie | |||
3 | O-Ring | |||
4 | Drainage Plug | |||
5 | O-Ring | |||
6 | Cross Recessed Pan Head Screw and Washer Assembling | |||
7 | Pump Cover | |||
8 | O-Ring | |||
9 | Activities Rings | |||
10 | Impeller | |||
11 | Mechanical seal | |||
12 | Pump Casing | |||
13 | Motor | |||
SPA Water Pump Applications
