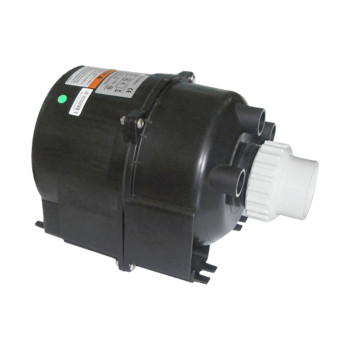

Spa Air Blower APR Series | Bathtub and SPA Hydrotherapy Silent Air Blower | Support for Customized Functions
- group name
- Blowers
- Min Order
- 50 piece
- brand name
- Hydrorelax Bathroom industry manufacturer
- model
- APR400, APR800, APR900, APR900-Z
- Nearest port for product export
- shanghai, ningbo, shenzhen, guangdong
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Sat, 10 May 2025 09:12:25 GMT
Paramtents
Thermal protector: with thermal protector
Insulation rating: F
Medium: dry air
Ambient temperature: ≤40℃
Maximum working pressure: 0.1MPa
Packging & Delivery
-
Min Order50 piece
Briefing
400~900W
1.0~2.0m³/min
1.0~2.0m³/min
Detailed
Spa Air Blower Introduction
Optional air switch, air outlet heater and ultraviolet germicidal light
Spa Air Blower Parameter
Spa Air Blower Dimension
*When D in fig.is thread connection, ф 32, ф 33.5 and ф 48.5 unions are available.
*When D in fig.is direct connection, only ф 48.5 pipe is available.
Spa Air Blower Exploded View
NO. | NAME | |||
1 | Front cover | |||
2 | Cross recessed pan head screws | |||
3 | Thermal protector | |||
4 | Bracket | |||
5 | Ring heater | |||
6 | Sealing pad | |||
7 | Heater block | |||
8 | Fuse | |||
9 | Motor | |||
10 | Fixed clamp | |||
11 | Sponge cushion | |||
12 | Back cover | |||
13 | Hexagonal Nut | |||
14 | Bottom feet | |||
15 | Cross recessed pan head tappig screws | |||
16 | Dir switch | |||
17 | Cable head | |||
18 | Cross recessed pan head screws | |||
Spa Air Blower Installation Diagram
Spa Air Blower Applications
