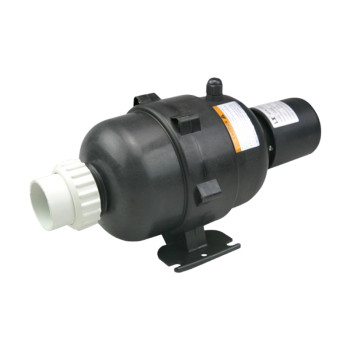

Spa Air Blower APW Series | Large Volume Optional Air Switch Heat Pump for Hot Tub | Manufacturer and Supplier
- group name
- Blowers
- Min Order
- 50 piece
- brand name
- Hydrorelax Bathroom industry manufacturer
- model
- APW300-1, APW400-1, APW700-1, APW900-1. APW300-2, APW400-2, APW700-2, APW900-2
- Nearest port for product export
- shanghai, ningbo, shenzhen, guangdong
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Sat, 10 May 2025 10:10:15 GMT
Paramtents
Thermal protector: with thermal protector
Insulation rating: A
Medium: dry air
Ambient temperature: ≤40℃
Maximum working pressure: 0.1MPa
Packging & Delivery
-
Min Order50 piece
Briefing
300~900W
1.65~5m³/min
1.65~5m³/min
Detailed
Spa Air Blower Introduction
Optional air switch
Spa Air Blower Parameter
Spa Air Blower Dimension
*When D in fig.is thread connection, ф 32, ф 33.5 and ф 48.5 unions are available.
*When D in fig.is direct connection, only ф 48.5 pipe is available.
Spa Air Blower Exploded View
NO. | NAME | |||
1 | Tie-in nut | |||
2 | Tie | |||
3 | Cross recessed pan head screws | |||
4 | Upper part of housting | |||
5 | Themal protector | |||
6 | Cross recessed pan head tappig screws | |||
7 | Heater | |||
8 | Motor | |||
9 | Shock absorber | |||
10 | Cross recessed pan head tappig screws | |||
11 | Cable gland | |||
12 | Bottom part of housing | |||
13 | Hexagonal Nut | |||
14 | Cable head | |||
15 | Cable | |||
16 | Switch assembling | |||
17 | Cross recessed pan head tappig screws | |||
18 | Intake-tube | |||
19 | Sponge cushion | |||
20 | Sponge cushion | |||
21 | Air cover | |||
22 | Silent block | |||
Spa Air Blower Installation Diagram
Spa Air Blower Applications
