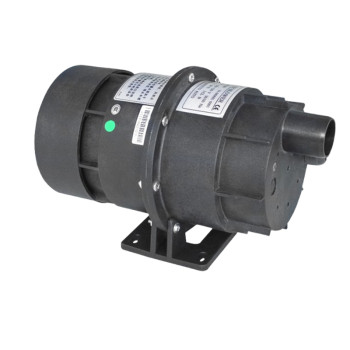

Compatible Air Blower A-000000-00561 | Boospa Bubble Massage Component | Durable Powerful & Energy-Efficient Air Pump for Hot Tub
- group name
- Air Blower
- Min Order
- 1 piece
- brand name
- Hydrorelax Bathroom industry manufacturer
- model
- AP700-V1
- Nearest port for product export
- shanghai, ningbo, shenzhen, guangdong
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union
- update time
- Sat, 10 May 2025 05:51:19 GMT
Paramtents
Compatible Brand: Compatible with Boospa Bubble System
Product Type: Non-OEM Compatible Replacement
Thermal protector: with thermal protector( single phase motor)
Insulation rating: F
Medium: dry air
Ambient temperature: ≤40℃
Maximum working pressure: 0.1MPa
Packging & Delivery
-
Min Order1 piece
Briefing
This spa blower is designed as a high-quality OEM alternative for A-000000-00561, ensureing that dry air is pumped into the spa hot tub for the ultimate bubble massage. It is not an original Boospa product but is fully compatible with Boospa bubble system that use A-000000-00561 spa air blower. Made from durable materials, it provides reliable performance and extended service life.
Detailed
Spa Pump A-000000-00561 | Boospa Bubble Massage Component
Optional air switch, air outlet heater and ultraviolet germicidal light
| Model | AP700-V1 |
| Power(W) | 700 |
110V-120V(Amps) | 7.0 |
220V-240V(Amps) | 3.3 |
Max Pressure(Mpa) | 0.020 |
Air volume(m³/min) | 2.2 |
Noise Level dB(A) | <72 |
Jets Qty(pc) | 16-32 |
Recommended Water Depth(m) | 0.8 |
(Kg) | 2.6 |
Packing size(mm) | 275*185*205 |
(Qty/20') | 2780 |
Compatible With
Air Blower Replacement for Boospa
*A-000000-00561
Spa Blower Dimension
| Model | AP700-V1 |
| Smooth outlet | L:249mm |
L1:97mm | |
D:φ32mm | |
Thread outlet | L:242mm |
L1:90mm | |
D:G1 1/2 | |
A | φ168mm |
H | 171mm |
H1 | 87mm |
H2 | 124mm |
| Model | AP700-V1 |
| Smooth outlet | L:249mm |
L1:50.5mm | |
D:φ32mm | |
Thread outlet | L:242mm |
L1:42.5mm | |
D:G1 1/2 | |
L1 | 52.5mm |
A | φ168mm |
H | 179mm |
H1 | 95mm |
H2 | 130mm |
Spa Blower Exploded View
NO. | NAME | |||
1 | Cross raised head screw assembling | |||
2 | Cable head | |||
3 | Union components | |||
4 | Upper part of housting | |||
5 | O-Ring | |||
6 | On shell pads | |||
7 | Fuse | |||
8 | Motor | |||
9 | Pad under the shell | |||
10 | Bottom part of housing | |||
11 | Hexegonal Nut | |||
12 | Air intake filter sponge | |||
13 | Air cover | |||
14 | Cross recessed pan head tappig screws | |||
15 | Handle | |||
16 | Shock pad | |||
Spa Blower Installation Diagram
This spa blower is designed as a high-quality OEM alternative for A-000000-00561, ensureing that dry air is pumped into the spa hot tub for the ultimate bubble massage. It is not an original Boospa product but is fully compatible with Boospa bubble system that use A-000000-00561 spa air blower. Made from durable materials, it provides reliable performance and extended service life.
